6132 CNC Metal Lathe Machine

4.9


(17)

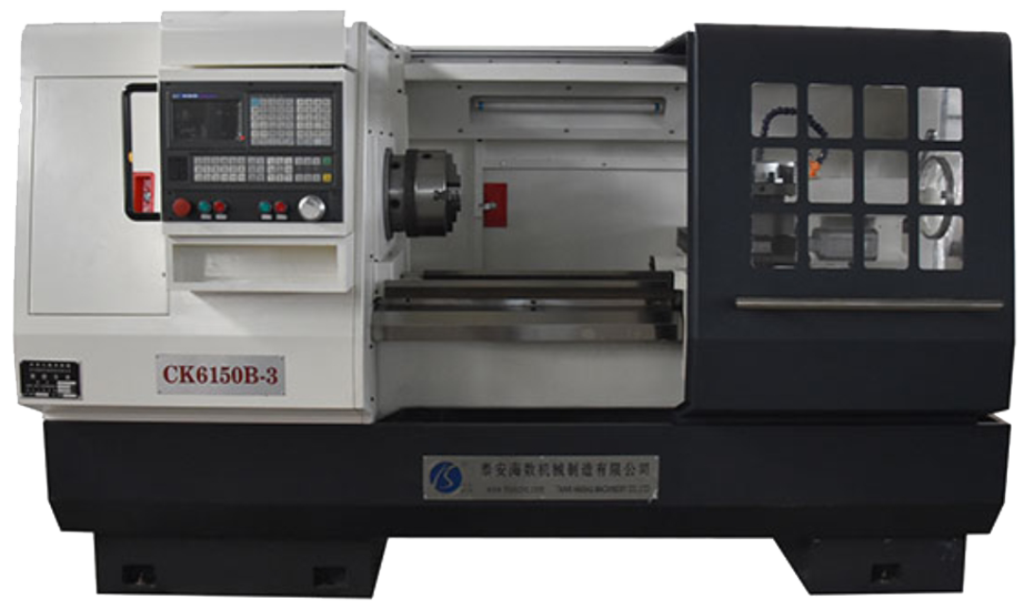

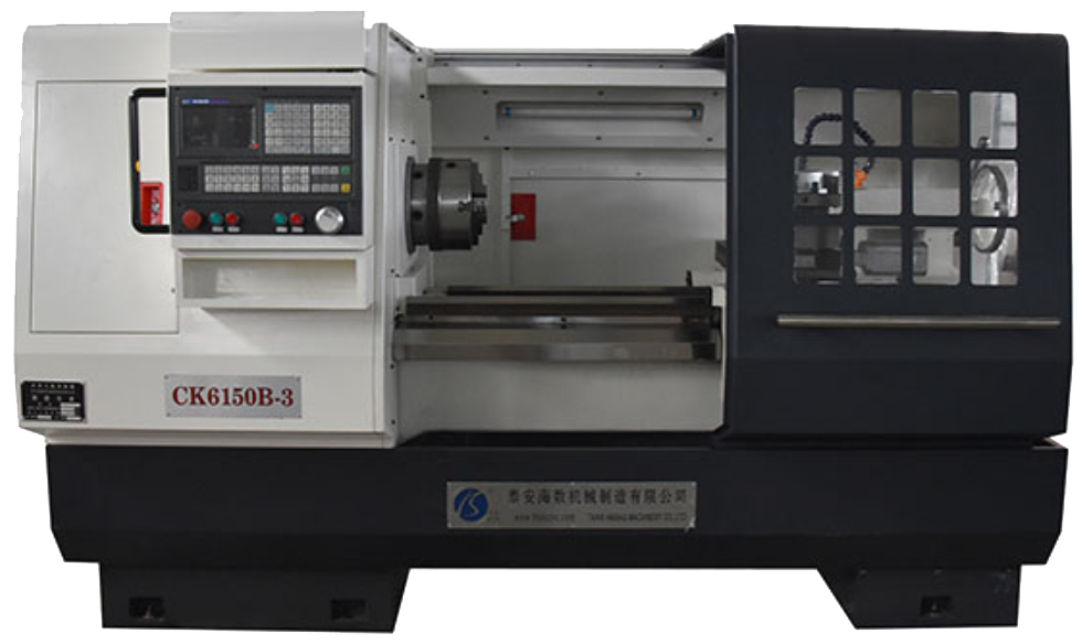

The 6132 CNC Metal Lathe is a high-precision flat bed lathe designed for accurate machining of metal components. Its robust construction and advanced features ensure excellent performance and precision. The induction-hardened bed ways and high-precision spindle bearings provide rigidity and accuracy. Meanwhile, the grinding-grade ball screw guarantees stable positioning. In addition, the monoblock cast iron base enhances the machine’s overall rigidity. With various capacities and multiple tool stations, this CNC metal lathe is a reliable choice for diverse machining applications.

We offer a full range of CNC metal lathes, including high-precision lathes, flat bed CNC lathes, and CNC turning machines for different industries. Whether you need a metal turning CNC solution, a CNC flatbed lathe, or a CNC lathe machine for metal, we provide reliable and advanced equipment.

Additionally, we offer CNC metal lathe machines for automotive CNC metal turning, supported by Fanuc lathe systems for superior accuracy. As leading CNC metal lathe machine suppliers, we deliver flat bed CNC lathe machines and CNC machining lathes to meet your production needs. Explore the differences between a lathe vs. CNC and what a CNC lathe is to better understand modern machining technology.

6132 Core Technical Parameters

Main Features

  • High Precision Machining: The 6132 CNC Metal Lathe is engineered to deliver high precision machining results, making it suitable for a wide range of metalworking projects.
  • Induction-Hardened Bed Ways: The bed ways of this lathe have been induction hardened to achieve a hardness of around HRC50, ensuring excellent durability and long-term accuracy.
  • High-Speed Spindle: The lathe features a spindle with a speed range of 150-2500 rpm, allowing for efficient machining of various materials.
  • Stable Positioning Accuracy: The use of high-quality grinding-grade ball screws ensures stable and precise positioning accuracy, resulting in consistent machining performance.
  • Durable Construction: The monoblock cast iron base provides exceptional rigidity, ensuring stability and reducing vibration during machining operations.

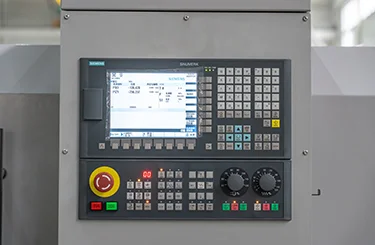

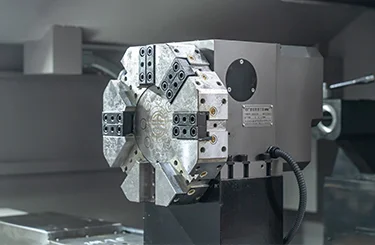

  • User-Friendly CNC Controls: Equipped with electrical type turret and easy-to-use CNC controls, the lathe offers intuitive operation and efficient programming for enhanced productivity.

Specification of 6132

SpecificationCK6132
Capacity

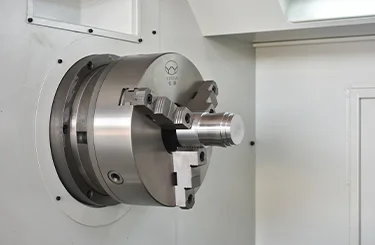

Chuck size6”, *8”
Max. swing dia. over bed360mm
Max. swing dia. over slide150 mm
Distance between center500/750/1000mm
Width of bed215mm
Spindle
Spindle speed range150-2500 rpm
Spindle boreΦ40mm
Max. dia. of through-holeΦ28mm
Spindle noseA2-5
Spindle taperMT5
Axis
X axis travel180mm
Z axis travel500/750/1000mm
X/Z axis rapid traverse6/8m/min
Turret
TypeElectrical type
No. of tool stations4, *6 position
Max. section of tool4P (20x20mm),*6P (16x16mm)
Tailstock
External diameterΦ32mm
Travel of tailstock quill100mm
Taper of tailstock quillMT4
Motor
Spindle motor power4kw
Coolant pump power120w
Machine Dimensions
Overal dimension (L×W×H)1620/1850/2150x1150x1600mm
Packing size(L×W×H)1780/1960/2260x1320x2000mm
N.w800/900/1050kg
G.w950/1100/1300kg
