Features:
0640 can be permanently memory coordinates after power offer,you do not need worry if people moved the position,it can continuely Processing half of the workpiece.
Machine often caused alarms because of these widgets, 0640 can set soft limit,so that can save machine maintenance time and cost.
It is suitbale for Mass production for small workpiece, High efficiency, high precision.
Bed Structure: High-rigidity cast iron frame ensures stability and vibration resistance during machining.
Spindle System: Spindle bore diameter 49mm, standard equipped with quick-lock spindle mechanism.
Drive Travel: X-axis travel 250mm, Z-axis travel 180mm, meeting most small-part machining requirements.
Tooling System: Standard rear-mounted 4-station electric tool changer with fast tool changes and a simple, reliable design.
Control System: Compatible with mainstream CNC systems like GSK and FANUC, featuring an intuitive interface and straightforward programming.
High Precision: Superior mechanical structure paired with precision servo drives ensures consistent workpiece processing and surface finish.
High Efficiency: Tool turret design eliminates traditional turret tool change time, making it ideal for continuous production of high-volume, low-process parts.
Compact Footprint & High Cost-Effectiveness: Compact structure saves workshop space; practical functionality delivers high return on investment.
Many shops report up to 30% faster setup and cycle times when using the CK0640. Consistent part quality reduces rework, while the fast tool changer decreases idle machine time, improving throughput for high volume parts.
Technical Parameters
| Specification | CK0640 |
| Max.swing over bed | 260mm |
| Diameter of X axis ballscrew | 25mm |
| Thread pitch of X axis ballscrew | 4mm |
| Diameter of Z axis ballscrew | 32mm |
| Thread pitch of Z axis ballscrew | 6mm |
| X-axis travel | 250mm |
| Z-axis travel | 180mm |

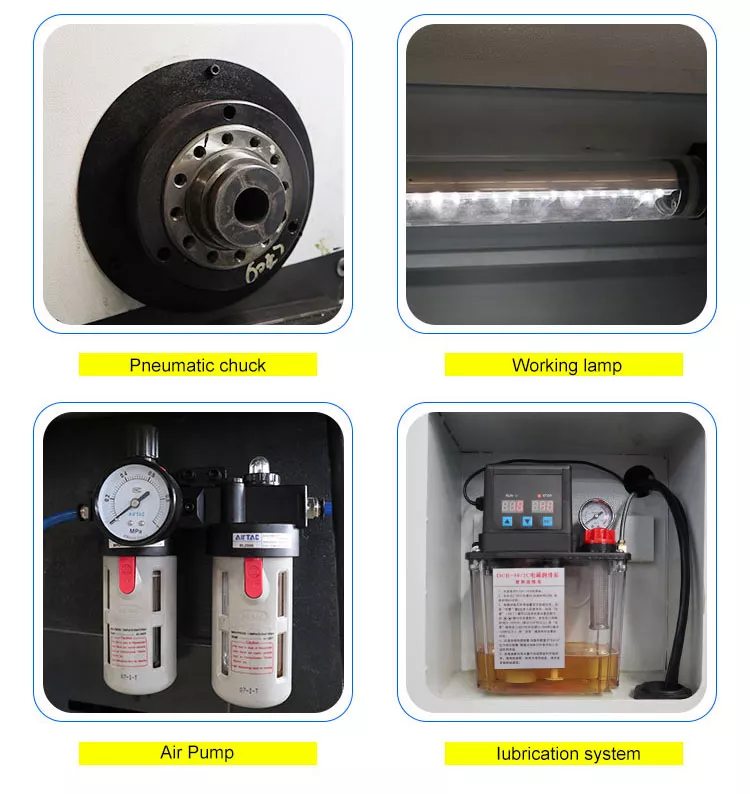

| Pneumatic chuck | 32mm |

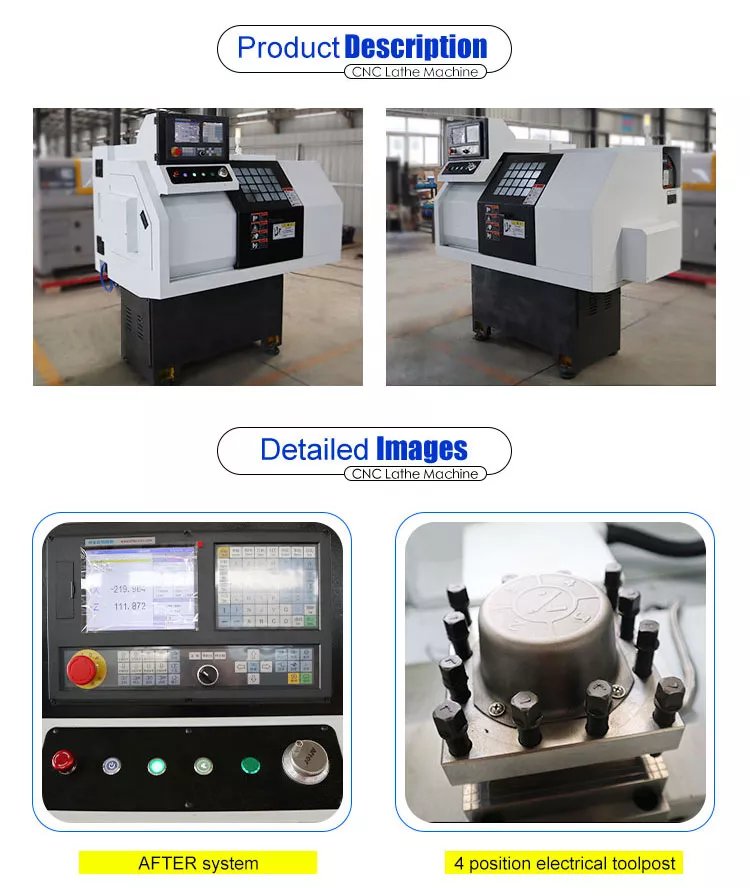

| Toolpost | 4 position electrical toolpost |
| Main Motor | 3kw |
| Motor for Coolant pump | 90W |
| Spindle bore | 49mm |
| Spindle hole after install pneumatic | 41.5mm |
| Re-positioning accuracy | 0.01mm |
| positioning accuracy | 0.01mm |
| Servo motor torque | 4.0NM |
| CNC controller system | after 980MDC |
| Machine size | 1760x1070x1730mm |
| G.W | 700kgs |
