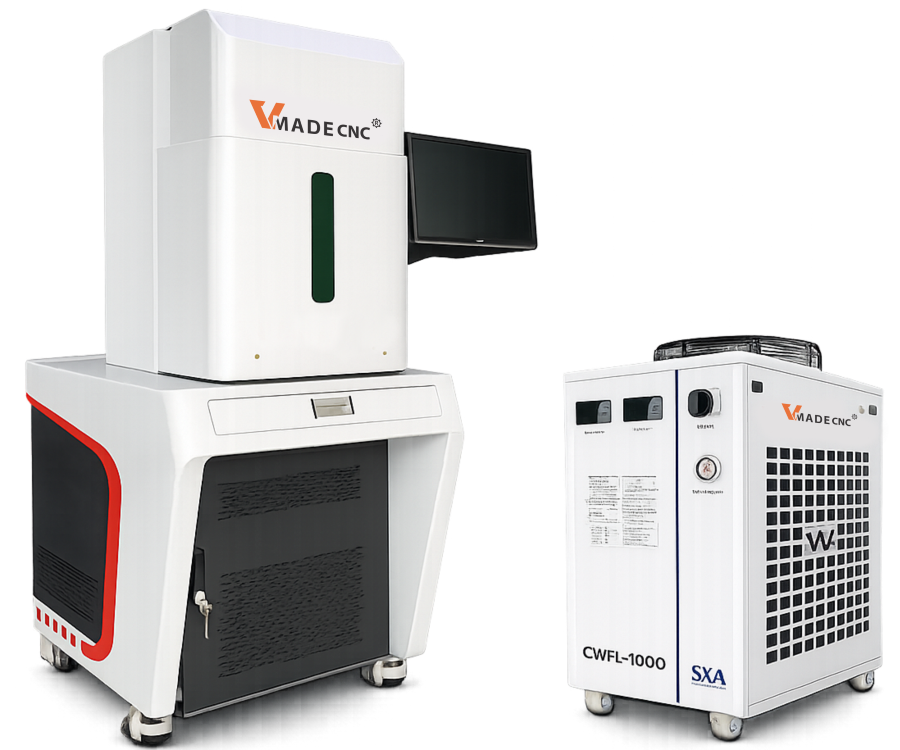

Main Features of Desktop UV Laser Marking Machine:
1.Permanent: The mark will not fade due to environmental factors (touch, acid and reduced gas, high temperature, low temperature,etc.)
2.High precision: The objects engraved by the UV laser marking machine have fine patterns, and the minimum line width can reach 0.01mm.
The marking is clear, durable and beautiful.Can print two-dimensional bar codes requiring more precision and higher definition.
3.Small thermal effect: The wavelength of the ultraviolet laser marking machine is 355nm, which is a cold light source, will not damage the surface of the material, is smokeless, and has no pollution, and has a particularly good effect for marking plastic materials.The processed material has smooth edges and surface.

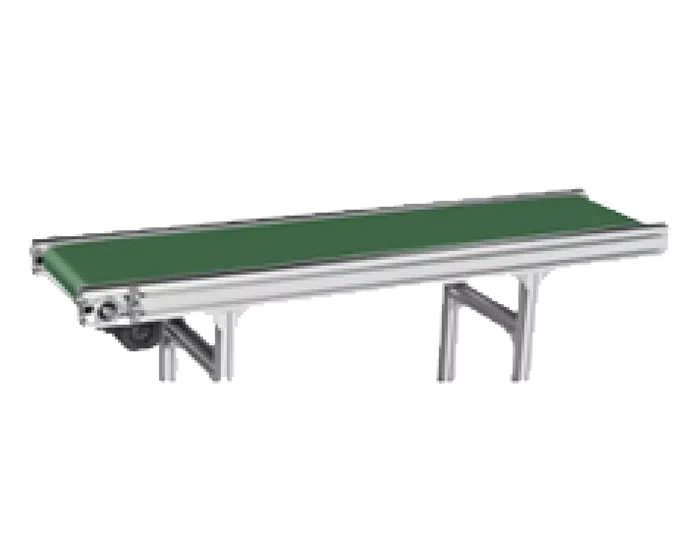

1500mm*200mm
We can customize design the length of conveyor belt, such as 800mm, 1000mm, 1200mm, 1500mm

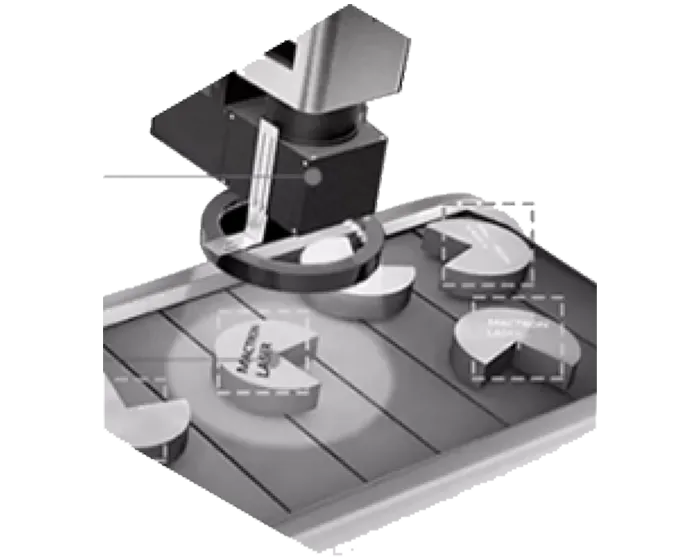

CCD camera positioning
F-theta-lens
High quality wavelength tech optical lens, we have optional size:75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm etc(optional, but prices vary)you can choosse one suitable size according to your needs.

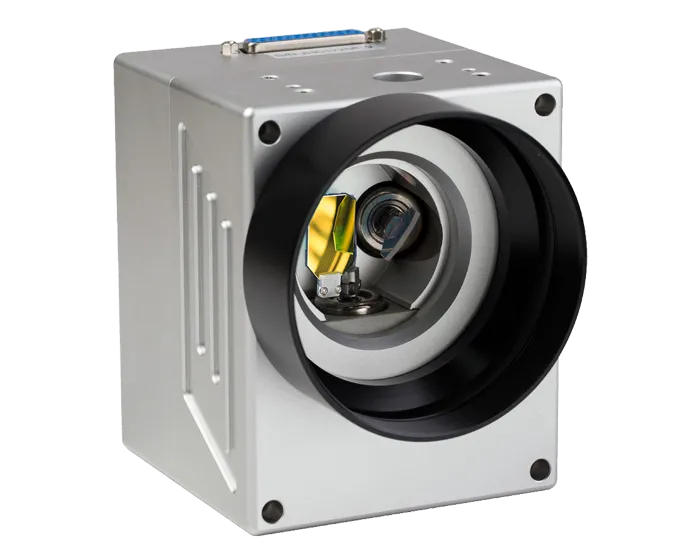

Best quality digital Galvotech scan head
Come with newest digital type scan head with double red dots build in more easy to get focus; Failed warning light ensure machine running correctly.

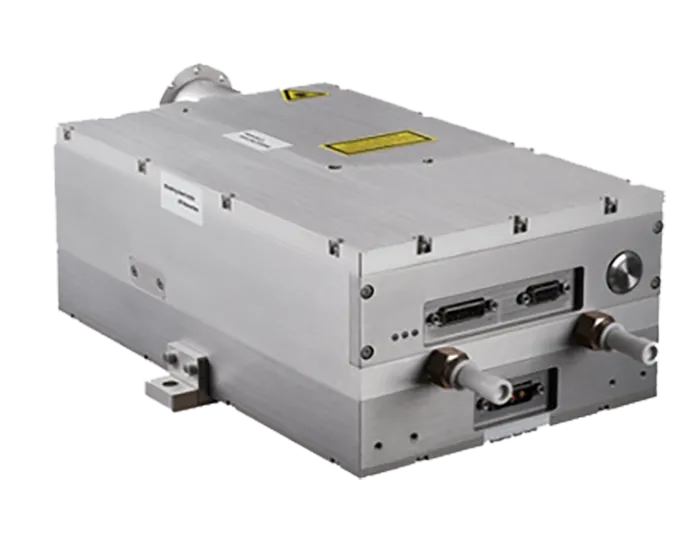

UV Laser Source:JPT/HuaRay/Inngu 3W 5W 10W
The 355nm ultraviolet laser has a ultra-small focusing spot, which greatly reduces mechanical distortion and reduces the processing heat affected zone to a very limited area.

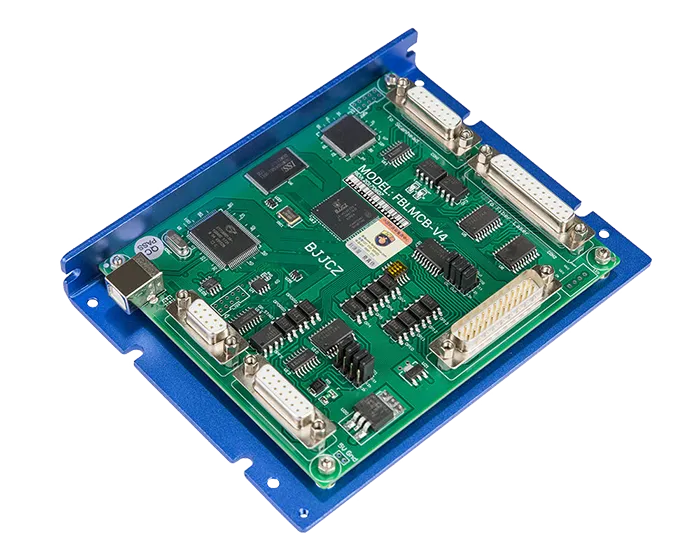

Genuine BJJCZ card
Software: EZCAD, control system WIN7, WIN8, WIN10 are ok

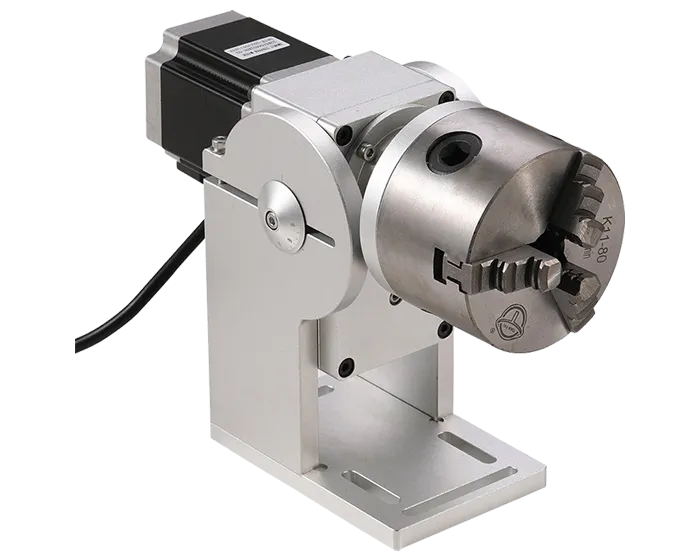

Rotary Device
Widely used for cylindrical objects, arc-shaped markings, easy to operate. With a rotating card slot on the headeasy installflexible adjustment.
Technical Parameters
| Laser source power | 3W/5W/10W |
| Laser wavelength | 355nm |
| Laser pulse width | 3W＜15ns@30khz, 5W＜15ns@40khz, 10W＜18ns@60khz |
| Laser frequency | 20khz~150khz |
| Laser beam quality | ＜1.2 |
| Marking area | 100x100mm, 150x150mm, 175X175mm, 200x200mm |
| Marking character | 0.1 x 0.1 mm |
| Support computer | XP, WIN7, WIN8, WIN10 |
| Control software | EZCAD |
| Control system | BJJCZ |
| Unit power | ≤900W |
| Power supply | AC110V 60HZ or AC220V 50HZ |
| Cooling mode | Air cooling |
| Room temperature | -15 ~ 50 ℃ |
| Gross weight | 60kgs |
| Packing size | 78x40x80cm |
Do you want more detailed information? Download our catalog!
Application Industry

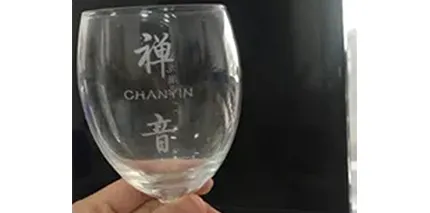

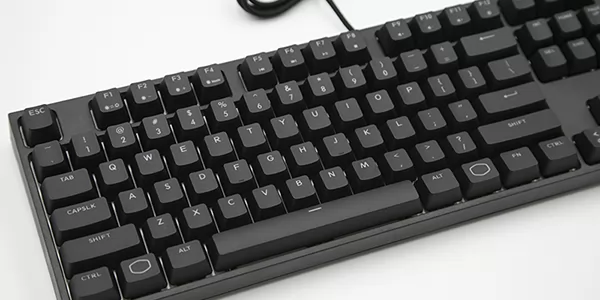

UV laser marking machine has been used in the high-end market of ultra-fine processing, marking the surface of iPhonecosmetics, medicine, food packaging; LCD liquid crystal glass, glass surface metal surface coating, plastic buttons, electronic components, gifts, communication equipment, Building materials and other fields
